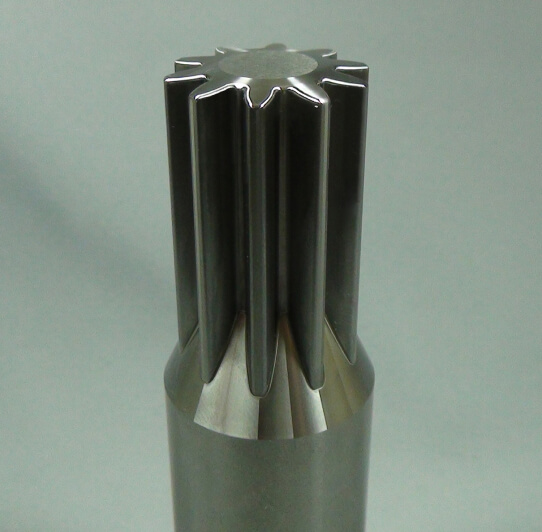

YMC 430+RT10 is the high-end machine that meets the constantly increasing demand for ultra-high precision and high quality of the simultaneous 5-axis micro machining.

Important Specifications

Travel (X,Y,Z)

420x300x250mm

Table working size

Dia. 115mm (EROWA) / 116mm(3R)

Loading capacity

15kg

Spindle rpm (HSK-E32)

40,000min⁻¹

YMC 430 + RT10
Free of charge
Consultation
appointment
request
ProductdetailsMedia libraryDownload CenterRelated Machines
HomeVertical 5-Axis

Productdetails

YMC 430 + RT10
5-Axis
Vertical

Machine Structure

YASDA's original high precision X-Y table is designed and developed to pursue "infinitely square" and "infinite straightness".


The unique structure enables the achievement of absolutely low vibration and high accuracy.

430rt10 Machine
430rt10 Machine

Rotary Table

YASDA's in house built high-precision rotary table equipped with a DD(Direct Drive) motor enables simultaneous 5-axis machining which requires high responsiveness.


As a chucking system, System 3R macro chuck or EROWA ITS-100 chuck is available.

430rt10 Table
430rt10 Table

Guide Way

The combination of ultra precision linear guides and linear motor drives realizes an ultra high level of straightness and smoothness during axis movement.

430rt10 Guide Way
430rt10 Guide Way

Thermal distortion stabilizing system

Measures against thermal displacement have been developed based on YASDA's long experience and technological advancements. This YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.

430rt10 Thermal
430rt10 Thermal

NC

15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provide intuitive operation and high functionality. The "OpeNe version 2.0" provide the operator with complete details of the machine and innovative solutions.

NC
NC

Spindle

YASDA's 40,000min-1 spindle realizes stable and high-precision machining for longer periods of time irrespective of the tool type or rotation speed.

430rt10 Spindle
430rt10 Spindle

ATC

YMC 430 is equipped a automatic tool changer (ATC) with 32 tools standard. The number of tools can be expanded up to 90 tools. This conpact 90-tools ATC needs the same installation space like the standard 32-stools ATC.

430 ATC
430 ATC

Specifications

Travel (X,Y,Z) : 420x300x250mm

   (B) : -10~+100deg

   (C) : 360deg (Continuous)

Table rotation speed (C) : YYY min-1

Spindle : 40,000min-1 [ 80,000min-1 (op) ]

Spindle Taper : HSK-E32  [ HSK-E25 (op) ]

Work dimension : Dia. 250x170mm (limitation)

Loading capacity : 15kg

Rapid traverse (X,Y,Z) : Max. 20,000mm/min

Table tilting speed (B) : 100 min-1

Table rotation speed (C) : 200 min-1

ATC capacity : 32 tools [ Max. 90 tools (op) ]
