H40i is table on table 5 axis machine employing high power DD motors on B and C axis as highly rigid linear guide ways support high feed with high production capacity.

Important Specifications

Travel (X,Y,Z)

875x740x685mm

Pallet working size

400x400mm

Loading capacity

200kg

Spindle rpm (BBT40)

20,000min⁻¹

H40i
Free of charge
Consultation
appointment
request
ProductdetailsMedia libraryDownload CenterRelated Machines
HomeHorizontal 5-Axis

Productdetails

H40i
5-Axis
Horizontal

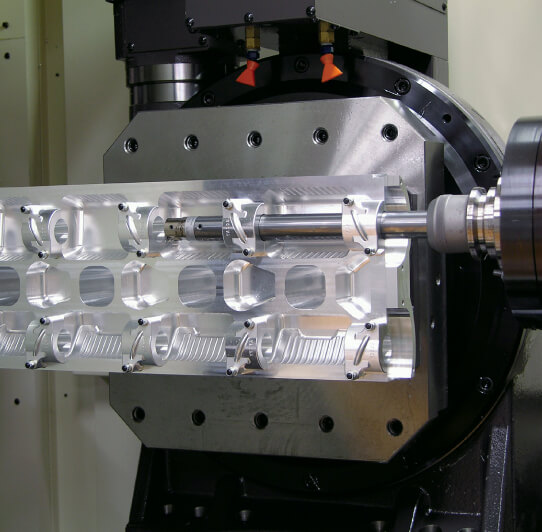

Machine Structure

H40i is designed for versatile performance for 5-axis applications, due to its rigidity, high speed and high accuracy.

H40i Machine
H40i Machine

Spindle

YASDA's 20,000min-1 spindle as standard. The highly accurate spindle minimizes thermal distortion and helps to achieve the desired accuracy.

H40i Spindle
H40i Spindle

NC

15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provide intuitive operation and high functionality. The "OpeNe version 2.0" provide the operator with complete details of the machine and innovative solutions.

NC
NC

ATC/APC

ATC: H40i is equipped with an automatic tool changer (ATC) with 60 tools standard. With additional magazines the number of tools can be expanded up to 240 tools.


APC: Automatic pallet changer (APC) is standard. Pre Load Stand (24 PLS) is also available as option.

H40i ATCAPC
H40i ATCAPC

Specifications

Travel (X,Y,Z) : 875x740x685mm

   (B) : -185~+45deg

   (C) : 360deg(Continuous)

Pallet working size: 400x400mm

Max. Workpiece : Dia. 500x350mm (Dia. 740mm with Limitation)

Loading capacity : 200kg

Spindle : 20,000min-1

Spindle Taper : BBT40 [ HSK-A63 (op) ]

Rapid traverse (X,Y,Z): Max. 50,000mm/min

Table rotation speed (B) : 20 min-1  [ DD motor : 75min-1 (op) ]

Table rotation speed (C) : 30 min-1  [ DD motor : 100min-1 (op) ]

ATC capacity : 60 tools [ Max. 240 tools (op) ]
