YBM 10T-TT is a horizontal 5 axis machining center with symmetric trunnion table and highly rigid 1000x1000mm table.

Important Specifications

Travel (X,Y,Z)

1,500x1,200x1,100mm

Pallet working size

1,000x1,000mm

Loading capacity

2000kg

Spindle rpm (BBT50)

10,000min⁻¹

YBM 10T-100TT
Free of charge
Consultation
appointment
request
ProductdetailsMedia libraryDownload CenterRelated Machines
HomeHorizontal 5-Axis

Productdetails

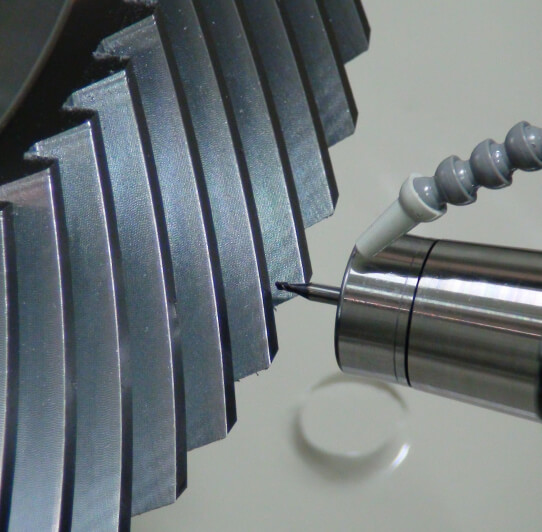

YBM 10T-100TT
5-Axis
Horizontal

Machine Structure

YASDA developed an original mechanism that enables high precision and high efficiency machining.


It can control very precisely against disturbances and controllability in reverse motion (A & B axis symmetric trunnion table)

10TTT Machine
10TTT Machine

Box Guide Way

YASDA's traditional hybrid box guide ways driven by Twin Ball screws.


The box guideway is fastened to a hand scraped mounting surface in order to minimize Roll, Pitch and Yaw error of each guideways and thus to achieve high straightness and geometric accuracy.

10TTT GuideWay
10TTT GuideWay

Spindle

Two motor driven torque tandem control Spindle :

-Two motor, one for high speed and the other for low speed drive spindle.


-In case the torque from low speed motor is not enough for heavy duty cutting, the spindle can be tandem (adding on high speed motor) to obtain higher torque .

10TTT Spindle
10TTT Spindle

Thermal distortion stabilizing system

Measures against thermal displacement have been developed based on YASDA's long experience and technological advancements. This YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.

10TTT Thermal
10TTT Thermal

NC

15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provide intuitive operation and high functionality. The "OpeNe version 2.0" provide the operator with complete details of the machine and innovative solutions.

NC
NC

ATC/APC

ATC: YBM10T-TT is equipped with an automatic tool changer (ATC) with 60 tools standard. With additional magazines the number of tools can be expanded up to 450 tools.


APC: Automatic pallet changer (APC) is standard. Pre Load Stand (PLS) is also available as option.

10TTT ATCAPC
10TTT ATCAPC

Specifications

Travel (X,Y,Z) : 1,500x1,200x1,100mm

   (A) : +5deg~-95deg

   (B) : 360deg(Continuous)

Pallet working size: 1,000x1,000mm

Loading capacity : 2,000kg

Max. Workpiece : Dia. 1,350x595mm

Spindle : 10,000min-1 [ 15,000min-1 /  8,000min-1 (Torqu tandem) (op) ]

Spindle Taper : BBT50 [ HSK-A100 (op) ]

Rapid traverse : Max. 16,000mm/min (X,Y,Z)

Table tilting speed : Max. 2min-1\

Table Rotation speed : Max.  6min-1

ATC capacity : 60 tools [ Max. 450 tools (op) ]
