YBM9150V allows a wide range of workpieces. The machine is capable of supporting various machining ranging from 3-dimensional large mold to precise plate machining.

Important Specifications

Travel (X,Y,Z)

1,500x900x450mm

Table working size

1,500x900mm

Loading capacity

2,500 kg

Spindle rpm (BBT40)

24,000min⁻¹

YBM 9150V
Free of charge
Consultation
appointment
request
ProductdetailsMedia libraryDownload CenterRelated Machines
HomeVertical 3-Axis

Productdetails

YBM 9150V
3-Axis
Vertical

Machine Structure

A machine bed made of high-quality cast iron supports the thermally symmetrical double column: the structure integrating the column and crossbeam as one component.


This makes the machine absolutely rigid and outstandingly stable.

640 950 9150 Maschine
640 950 9150 Maschine

Guide Way

YASDA's traditional hybrid box guide ways:

The box guideway is fastened to a hand scraped mounting surface in order to minimize Roll, Pitch and Yaw error of each guideways and thus to achieve high straightness and geometric accuracy.

640 950 9150 Guide Way
640 950 9150 Guide Way

Spindle

The preload self-adjusting spindle developed by YASDA realizes a high degree of accuracy through whole speed range.

640 950 9150 Spindle
640 950 9150 Spindle

Thermal distortion stabilizing system

Measures against thermal displacement have been developed based on YASDA's long experience and technological advancements. This YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.

640 950 9150 Thermal
640 950 9150 Thermal

NC

15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provide intuitive operation and high functionality. The "OpeNe version 2.0" provide the operator with complete details of the machine and innovative solutions.

NC
NC

ATC/APC

ATC: YBM9150V is equipped with an automatic tool changer (ATC) with 60 tools standard. With an additional magazine the number of tools can be expanded up to 100 tools.

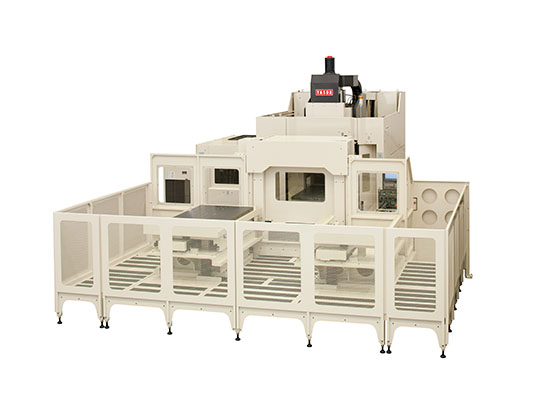

APC: Automatic pallet changer (APC) is also available as an option.

9150 ATC
9150 ATC

Specifications

Travel (X,Y,Z) : 1,500x900x450mm

Spindle rpm : 24,000min-1 [10,000min-1 (op) ]

Spindle Taper : BBT40 [ HSK-A63 (op) ]

Table working size: 1,500x900mm

Loading capacity : 2,500kg

Rapid traverse : Max. 20,000mm/min

ATC capacity : 60 tools [ Max. 100 tools (op) ]
